Realtrace design and manufacture a range of electronic animal identification products and software. Download here all documents and manuals.

RFID Readers

RT16 T and BTT

RFID reader and Thermometer.
The smallest reader on the market.
Reads FDXB chips.
USB port rechargeable lithium battery.
Connection via Bluetooth.
Free mobile phone application

DOCUMENTS TECHNIQUES /

GALLERY D'IMAGES /

RT15T

New ISO 11784/85-compliant reader, CE, FCC, UKCA and RoHS certified.
Excellent reading distances (10/12cm) despite its small size, 55g.
Reads all ISO FDXB and ISO temperature chips, as well as the “Fever check” bio-sensor chip.
TFT color graphic display. Lithium battery with USB charging.

DOCUMENTS TECHNIQUES /

GALLERY D'IMAGES /

RT11BTT

New ISO 11784/85-compliant reader, CE, FCC, UKCA and RoHS certified.
Excellent reading distances.
Reads all ISO FDXA, FDXB, HDX and temperature chips.
Automatically manages reference temperature for 5 animals.
Color graphic TFT display, 1600mA lithium battery with USB charging.
Communication: USB mini. Bluetooth BLE and HID.
Built-in calendar clock.
Weight: 105g
Memory: 10,000 numbers and dates

GALLERY D'IMAGES /

RT600BT Pro

New ISO 11784/85-compliant reader, CE, FCC, UKCA and RoHS certified.
Stick reader with the best reading distances on the market:
Glasstag 2 x12mm: 18/20cm
Eartag HDX 27mm 55/60cm
Eartag FDXB 27mm 30/36cm
TFT color graphic display, Lithium battery 7.4V, 3000mA.
Communication: USB mini, Bluetooth BLE and HID
Integrated calendar clock
Weight: 430g
Memory: 10,000 numbers and dates

DOCUMENTS TECHNIQUES /

Driver RT600BT Pro >

User Manuel RT600BT PRO > (to be upoloaded)

Realtrace Terminal >

GALLERY D'IMAGES /

V8BT & V8BTT

Professional RFID reader. Display in seven different languages. Reads ISO FDXB, FDXA, HDX and EM4102 chips. Reads temperature chips. Connection via USB and Bluetooth. USB port rechargeable lithium battery. Memory capacity of 800 numbers.

Free software and apps :

– Petscan (Playstore & Appstore)

– Realtrace Terminal

GALLERY /

RT10M

The smallest reader on the market. Reads FDXB chips. Memory capacity of 200 numbers. USB port rechargeable lithium battery. Connection via USB.

GALLERY /

RT250BT

Professional RFID reader. Display in seven different languages. Reads ISO FDXB, FDXA, HDX and EM4102 chips. Reads temperature chips. Connects via USB and Bluetooth. USB port rechargeable lithium battery. Memory capacity of 800 numbers.

Free software and apps :

– Petscan (Playstore & Appstore)

– Realtrace Terminal

GALLERY /

V8M

Professional RFID reader. Connection via Bluetooth with an Android or iOS smartphone. Reads FDXB chips. USB port rechargeable lithium battery.

Free software and apps :

– Petscan (Playstore & Appstore)

– Realtrace Terminal

GALLERY /

Syringes and canullas

Fever Check

This is an implantable “Chip” for both pets and livestock measuring 2 x12mm which does not have an identification function. Its function is only to provide information on the animal’s temperature at the time of reading. Its installation is recommended on the right side of the animal.

DOCUMENTS TECHNIQUES /

GALLERY D'IMAGES /

Fever Check Box

Kit including an RT16TBT reader and a Fever check chip.

DOCUMENTS TECHNIQUES /

GALLERY D'IMAGES /

Syringe + thermal chip

2 x 12mm bioglass transponder incorporating a thermal bio-sensor which transmits the temperature of the environment in which it is integrated, from 30 to 50°C, at the same time as its ISO number.

Anti-migratory parylene-treated bio-glass

Programmed to ISO 11784 standards

Country-specific coding according to national standards.

Six adhesive barcodes

French approval issued by the Ministry of Agriculture/CETIM

Integrated in sterilized packaging.

DOCUMENTS TECHNIQUES /

GALLERY D'IMAGES /

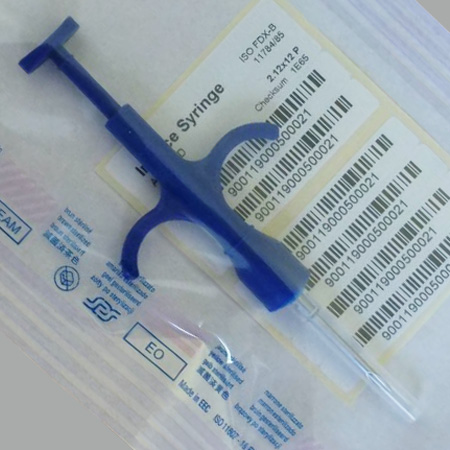

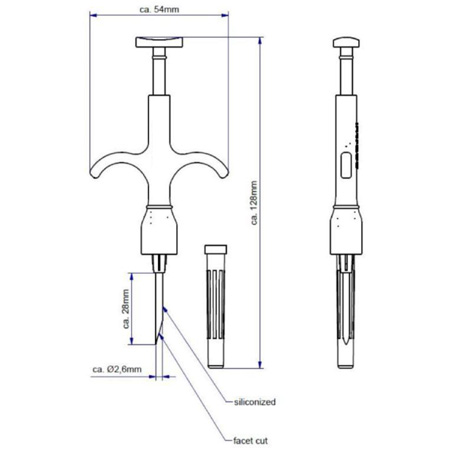

Syringe + standard chip

2 x 12 mm transponder in anti migrating, parylene treated bioglass.

Programmed according to ISO 11784 standards.

Country specific codification according to national standards.

Six auto-adhesive barcodes.

French approval delivered by the minister of agriculture/CETIM.

Sold in sterilised packaging.

TECHNICAL DOCUMENTS /

GALLERY /

Syringe + mini chip

1.41 x 8.3 mm transponder in anti migrating, parylene treated bioglass.

Programmed according to ISO 11784 standards.

Country specific codification according to national standards.

Six auto-adhesive barcodes.

French approval delivered by the minister of agriculture/CETIM.

Sold in sterilised packaging.

TECHNICAL DOCUMENTS /

GALLERY /

Syringe + micro-chip

1.25 x 8.3 mm transponder in anti migrating, parylene treated bioglass.

Programmed according to ISO 11784 standards.

Country specific codification according to national standards.

Six auto-adhesive barcodes.

French approval delivered by the minister of agriculture/CETIM.

Sold in sterilised packaging.

TECHNICAL DOCUMENTS/

GALLERY /

Reusable injector

Reusable injector made in PLA (biodegradable plastic).

Reusable more than 10 times. Compatible with standard 2 x 12 mm chips and canullas and mini 1.4 x 8.3 mm chips and canullas.

A mandrel integrated into the canulla prevents contact in-between the plunger and the animal, insuring its reusability.

TECHNICAL DOCUMENTS /

GALLERY /

Cannula + micro chip

Transponder 1.25 x 8.3 mm in Parylene-treated anti-migratory bioglass.
Programmed to ISO 11784 standards.
Country-specific coding according to national standards.
Six self-adhesive barcodes.
French approval issued by the Ministry of Agriculture/CETIM.
Sold in sterilized packaging.

DOCUMENTS TECHNIQUES /

GALLERY D'IMAGES /

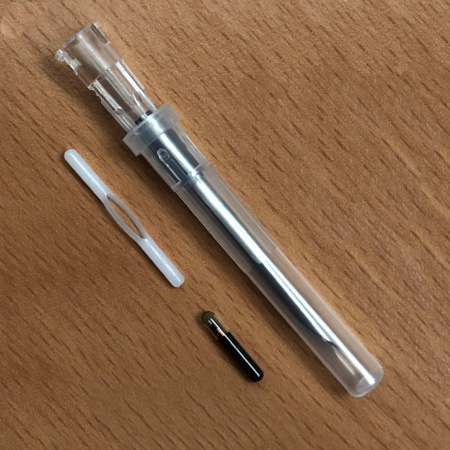

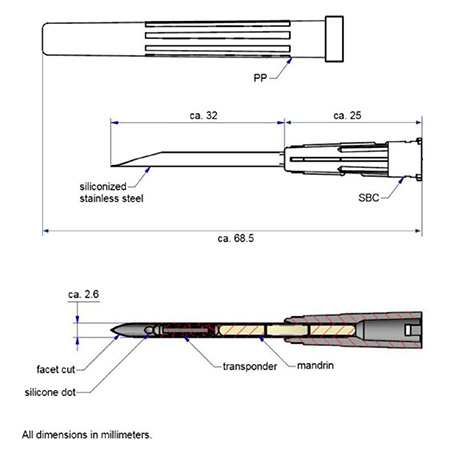

Cannula + standard chip

2 x 12 mm transponder in anti migrating, parylene treated bioglass.

Programmed according to ISO 11784 standards.

Country specific codification according to national standards.

Six auto-adhesive barcodes.

French approval delivered by the minister of agriculture/CETIM.

TECHNICAL DOCUMENTS /

GALLERY /

Cannula + mini chip

1.41 x 8.3 mm transponder in anti migrating, parylene treated bioglass.

Programmed according to ISO 11784 standards.

Country specific codification according to national standards.

Six auto-adhesive barcodes.

French approval delivered by the minister of agriculture/CETIM.

TECHNICAL DOCUMENTS /

GALLERY /

Localization

The European database portal.goback.eu

Many databases registering pet identification information exist in Europe. These are mostly private databases but some — such as the I-CAD in France — are government-monitored. To be registered, the animal must have an implanted electronic chip.

While most EU countries have agreed to require electronic identification for travelling animals, the laws inside these countries are not aligned e.g. in Switzerland where it is not mandatory to register cats, or Germany where electronic identification is advised but not mandatory.

These databases are incomplete because they only hold information for electronically-identified animals. This is why we have created a database where all pets can be registered, whether chipped, tattooed or simply wearing a medal.

The GoBack BT and GoBack QR medals allow certain and immediate identification of an animal and its owners.

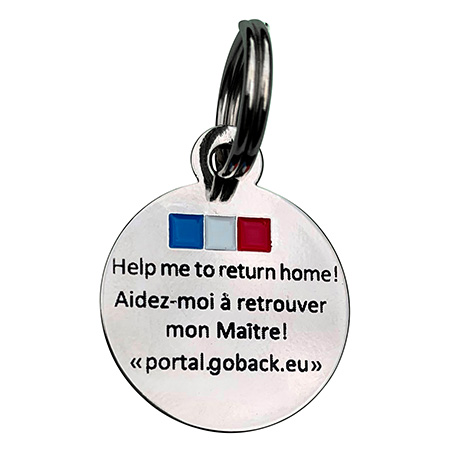

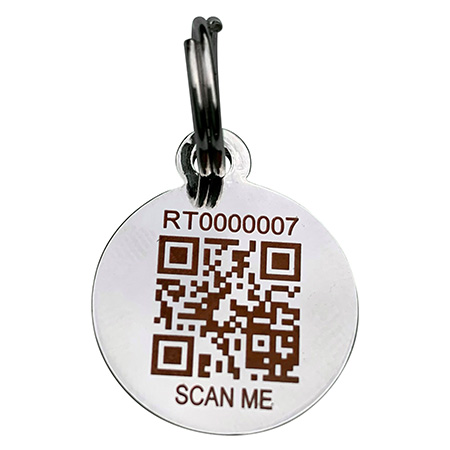

GoBack QR Medal

Small, light and pretty, it allows thanks to a simple QR scan with a smartphone, to retrieve an animal’s owners.

GALLERY /

GoBack BT Medal

Like the GoBack QR Medal, it allows the identification of an animal and its owners, but the integrated Bluetooth transmitter also allows to verify if the animal is in close range, or if it needs to be found (80 / 100m max).

GALLERY /

Software and programs

Customizer

Program for the personalization of the V8BT or RT250BT readers display.

TECHNICAL DOCUMENTS /

GALLERY /

Timeout

Program for the personalization of the length of the display before auto power-off, for the V8BT or RT250BT readers.

TECHNICAL DOCUMENTS /

GALLERY /

SDK Bluetooth

Program to assist the development of applications using the Bluetooth functions of the V8BT and RT250BT readers.

GALLERY /

SDK Windows 10

Program to assist the development of applications for the V8BT and RT250BT readers in a Windows 10 environnement.

GALLERY /

Realtrace Terminal

Program to assist the management of identification data read from micro-chips by V8BT, RT250BT, V8MBT and RT10M readers.

TECHNICAL DOCUMENTS /

GALLERY /

Realtrace Reader Driver

Driver for connecting all Realtrace readers to a pc.

TECHNICAL DOCUMENTS /

GALLERY /

V8 Firmware Loader

Program for updating V8BT and RT250BT readers firmware, via the USB port.
